CV45

BMD Mechanical Dump Valve

The CV45 is a mechanical dump valve used for discharging liquid or gas from separators, treaters, knockout or other vessels.

  • Available with full port and reduced port sizes
  • Quick open
  • Leak-free shutoff

FW Murphy is the exclusive BMD distributor for new equipment packages.

  • Overview
  • Specifications
  • Diagrams
  • Literature

The CV45’s full port allows for high flow rates, and its soft seat design gives a consistent leak-free shut off. This low pressure dump valve features a balanced plug control trim with a quick opening characteristic. The CV45 can provide a completely emission free level control/dump system when installed with an LC70 level control.

The CV45 is a great economical choice for a variety of low-pressure applications.



Sizes: 2”, 3” and 4”
Connections: Female NPT, flanged
Body Type: Globe, angle
Trim Characteristic: Quick Open
Trim Size:
2” Body Size: 2”, 1 1/2”, 1”
3” Body Size: 3”, 2”, 1”
4” Body Size: 4”, 3”, 2”, 1”
Trim Type: Balanced
Pressure Rating:
500 psi – 2”, 3”, 4” NPT
250 psi – 2”, 3”, 4” flanged
Temperature Range:
-20° F to 400° F (-29° C to 204° C)
Materials:
  Body and Bonnet: Ductile iron
  Internals: 304 stainless steel

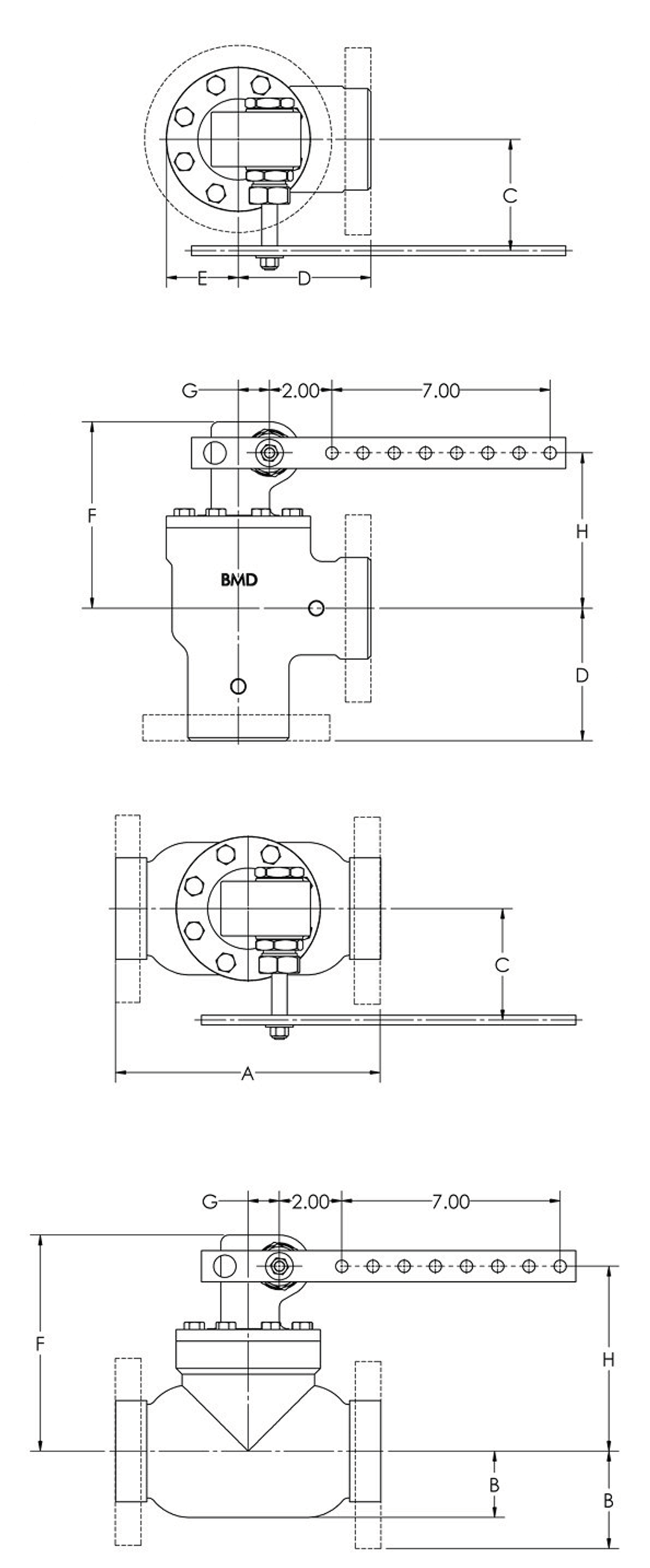

CV45 Dimensions (inches)



Valve Dimensions
Body Size
(inch)
End
Connection
Globe Angle
A B C F G H C D E F G H
2″ NPT 8.50 2.13 3.57 6.00 1.00 5.00 3.57 4.25 2.31 6.00 1.00 5.00
150 RFF 9.00 3.06 3.57 6.00 1.00 5.00 3.57 4.25 3.06 6.00 1.00 5.00
3″ NPT 12.00 3.00 3.60 7.29 1.39 5.79 3.60 5.50 3.00 7.29 1.39 5.79
150 RFF 12.19 3.88 3.60 7.29 1.39 5.79 3.60 5.50 3.88 7.29 1.39 5.79
4″ NPT 15.00 3.75 3.78 10.26 1.39 8.77 3.78 6.50 3.56 10.26 1.39 8.77
150 RFF 15.13 4.50 3.78 10.26 1.39 8.77 3.78 6.50 4.50 10.26 1.39 8.77



For more information about this product, you can download the related literature here:

Sales Bulletin; (2415461, revision date: 6/2024)
