BMD Regulators
The RG40 is a compact, high-pressure, spring-operated regulator designed to reduce high pressures down to working pressures.
- Standard unit features rugged brass body and housing with durable metal diaphragm and nylon disk for handling high-pressure drops
- Stainless steel version available for NACE services
FW Murphy is the exclusive BMD distributor for new equipment packages.
The RG40’s typical applications include reduction of high pressure to operate chemical injection pumps, valve actuators or controllers. Its compact form and cost-effective design make it an ideal choice for many other applications as well.
- Connection: 1/4” NPT (1 inlet, 3 outlets)
- Inlet Pressure Rating: 5000 psi
- Temperature Range:
- Brass: -70° F to 225° F (-57° C to 107° C)
- Stainless: -40° F to 225° F (-40° C to 107° C)
- Output Ranges: 0 – 125 psi, 0 – 225 psi
- Adjustment Screw: Standard, tee-handle
- Materials Brass Option:
- Body and Housing: Brass
- Diaphragm: Stainless steel
- Orifice: Stainless steel
- Disk: Nylon
- Spring: Steel
- Materials Stainless Option:
- Body and Housing: 316SS
- Diaphragm: Monel 400
- Orifice: 316SS
- Disk: PTFE
- Spring: Stainless steel

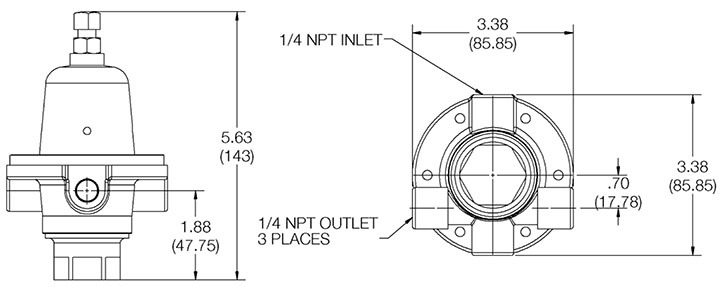

RG40 Dimensions Inch (mm)
